| Material: | Stainless Steel | IP Code: | IPX5, IPX6 |
|---|---|---|---|
| Temperature: | Room Temperature | Warranty: | 12 Months |
| Standard: | IEC60529 | IPX5 Nozzle Diameter: | Φ6.3mm |
| IPX6 Nozzle Diameter: | Φ12.5mm | IPX5 Flow: | 12.5±0.625(L/min) |
| IPX6 Flow: | 100±5(L/min) | Load-bearing: | 50KG |
| High Light: | IP56 Spray Test Chamber , Waterproof IP56 Spray Test Chamber , IP56 automatic testing machine |
IPX56 Waterproof Automatical Test Machine IP Spray Test Chamber
Features:
Chamber type, circulating water
The spray nozzles can swing automatically
The height of water spray can be set.
Main Technical Parameters:
| Model | Internal dimension | Outer dimension | Power |
| SC-IPX56C-200L | 600×600×600mm | 3600×780x1600mm | 3.0KW |
| SC-IPX56C-500L | 800×800×800mm | 3800×980×1750mm | 3.0KW |
| SC-IPX56C-700L | 900×900×900mm | 3900×1080×1750mm | 3.0KW |
| SC-IPX56C-1000L | 1000×1000×1000m | 4000×1180×1850mm | 3.0KW |
| SC-IPX56C-1400L | 1200×1200×1000mm | 4200×1380×1850mm | 3.0KW |
| IPX5 nozzle diameter | Φ6.3mm | ||
| IPX6 nozzle diameter | Φ12.5mm | ||
| IPX5 flow | 12.5±0.625(L/min) | ||
| IPX6 flow | 100±5(L/min) | ||
| load d-bearing | 50KG | ||
| Flow control mode | Manual adjustment (rotor flow meter) | ||
| Safety protection measures | Leakage protection, water shortage protection, short circuit protection |
Note: other sizes can be customized according to requirements

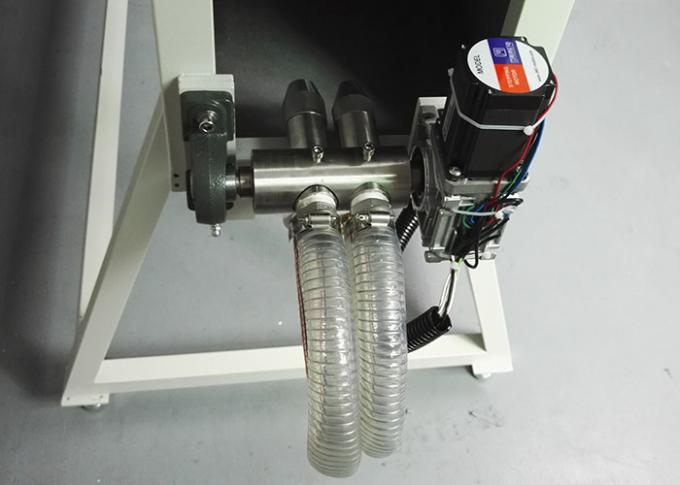

The spray nozzle can swing automatically.
Application:
It is used for the testing of IPX5 and IPX6
The device to shell protection grade (IP code) based mainly for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.
Conform to:
IEC60529
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IEC60034
DIN40050
ISO20653
IP Code of the IPX5 and IPX6
Waterproof Rating:
IPX1
Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX2
Protected against falling water when tilted up to 15 degrees – Same as IPX1 but unit is tested in 4 fixed positions – tilted 15 degrees in each direction from normal operating position.
IPX3
Protected against spraying water – Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX4
Protected against splashing water – Same as IPX3 but water is sprayed at all angles.
IPX5
Protected against water jets – Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX6
Protected against heavy seas – Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX7
Protected against water immersion – Immersion for 30 minutes at a depth of 1 meter.
IPX8
Protected against water submersion – The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.
We are professional IP waterproof Testing Equipment manufacturer.
Details Pictures:
