| Standard: | IEC 60529, EN 60529 | Application: | Waterproof Testing For IPX7 |
|---|---|---|---|
| Material: | Stainless Steel | Testing Time: | 0-99min |
| Function: | Ingress Protection Level Test | Inner Height: | Generally 1.2 Meters, Can Be Customized |
| Water Level Display: | Stainless Steel Ruler (accuracy 1mm). Horizontal Vision15 Degree | Can Customized Or Not: | Support Customization, Please Consult Ahead Of Time |
| High Light: | SS304 IEC 60335 Ingress Protection Test Equipment , SS304 Ingress Protection Test Equipment , SS304 ipx7 waterproof test |
IEC60335 IPX7 Immersion Waterproof Stainless Steel Test Chamber
Parameters:
| classification | Stainless steel type |
| materials | 304 Stainless steel |
| Box thickness | 1.5mm |
| Composition structure | Double-deck |
| Inner height | Generally 1.2 meters, can be customized |
| Can customized or not | Support customization, please consult ahead of time |
| Water level display | Stainless steel ruler (accuracy 1mm). horizontal vision15 degree |
| How to adjust the water level | Control the inlet/ drain valve, manual adjustment |
Note: other sizes can be customized according to requirements.
Main purpose:

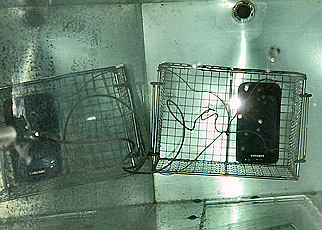

Test the product waterproof performance in the soaking environment (water depth 1 m)
Through the test,
check whether the product waterproof level meet the requirements,
so that the product design R &D and factory inspection use.
Description:
Assessment of enclosures and sealing element whether can ensure good performance of equipment and components after the water test or during the test.
Confirm to standards:
IEC 60529 IPX7;
EN 60529 IPX7 ;
IEC 60884-1;
IEC 60598-1;
IEC 60335-1 and so on.
Features:

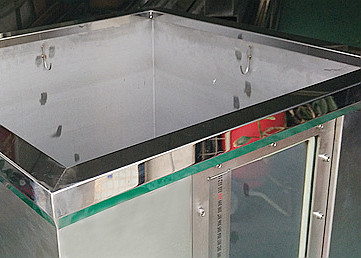

304 stainless steel material
1 2mm tempered glass
Casters move, foot cups fixed
The size can be customized
Waterproof Rating:
IPX-1 Protected against falling water Equivalent to 3-5mm rainfall per minute for a duration of 10 minutes.
Unit is placed in its normal operating position.
IPX-2 Protected against falling water when tilted up to 15 degrees – Same as IPX-1 but unit is tested in 4 fixed positions – tilted 15 degrees in each direction from normal operating position.
IPX-3 Protected against spraying water – Water spraying up to 60 degrees from vertical at 10 liters/min at a pressure of 80-100kN/m2 for 5 min.
IPX-4 Protected against splashing water – Same as IPX-3 but water is sprayed at all angles.
IPX-5 Protected against water jets – Water projected at all angles through a 6.3mm nozzle at a flow rate of 12.5 liters/min at a pressure of 30kN/m2 for 3 minutes from a distance of 3 meters.
IPX-6 Protected against heavy seas – Water projected at all angles through a 12.5mm nozzle at a flow rate of 100 liters/min at a pressure of 100kN/m2 for 3 minutes from a distance of 3 meters.
IPX-7 Protected against water immersion – Immersion for 30 minutes at a depth of 1 meter.
IPX-8 Protected against water submersion – The equipment is suitable for continual submersion in water under conditions which are identified by the manufacturer.
We are professional IP waterproof Testing Equipment manufacturer.
Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.
Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
