IEC60061-3 Mold Steel IEC Test Equipment , B22 Lamp Cap Gauge

Standards:IEC60061-3Warranty:12 Months
Material:Mold Steel7006-10-8:Not Go Gauges For Caps On Finished Lamps BA9,B15,B22&BY22d
7006-11-8:Go Gauges For Caps On Finished Lamps BA9,B15,B22&BY22d7006-4A-2:B22 Or B15 Diametrical Position Of The Pin Insertion In Lampholder
7006-4B-1:B22or B15 Diametrical Position Of The Pin Retention In LampholderIEC60968 Figure 3:B22d Torque Test Gauges
High Light:IEC60061-3 IEC Test Equipment ,  B15 IEC Test Equipment ,  B22 lamp cap gauge

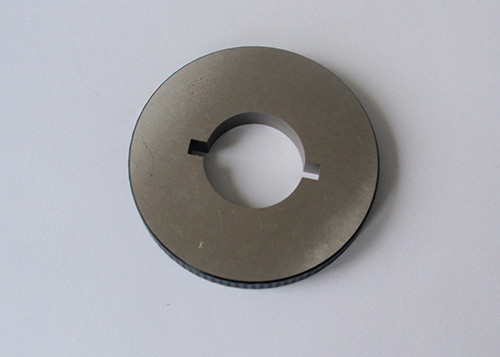

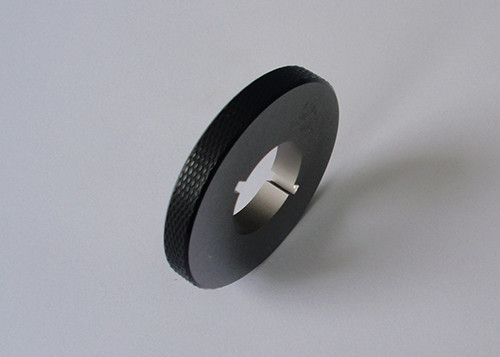

B22 Lamp Cap Gauge Go And Not Go Gauge Bayonet Gauge IEC60061-3

Specification:

StandardProduct Name
IEC60061-3,7006-10-8“Not Go”gauges for caps on finished lamps BA9,B15,B22&BY22d
IEC60061-3,7006-11-8“Go”gauges for caps on finished lamps BA9,B15,B22&BY22d
IEC60061-3,7006-4A-2B22 or B15 Diametrical position of the pin Insertion in lampholder
IEC60061-3,7006-4B-1B22or B15 Diametrical position of the pin Retention in lampholder
IEC60061-3,7006-3-1Acceptance gauge for B22d caps intended for automatic wire threading
IEC60061-3,7006-19-2“Go”gauges for caps B22d-3(90◦/135◦)/25*26 on finished lamps
IEC60968 Figure 3B22d torque test gauges
IEC60061-3,7006-12-8Plug gauges for lampholders BA21, B15&B22
IEC60061-3,7006-15-7Gauges for checking contact position and contact force in bayonet lampholders B22d-3((90◦/135◦)
IEC60061-3,7006-20-4Plug Gauges for bayonet lampholders B22d-3((90◦/135◦)
IEC60061-3,7006-12A-2Supplementary “Go” gauges for lampholders B22d & BY22d
IEC60061-3,7006-12B-2“Not Go” Retention gauges for lampholders B22
IEC60061-3,7006-15A-2Gauges for checking contact position and contact force in bayonet lampholders B22d&BY22d
IEC60061-3,7006-13-5Gauges for slots in lampholders B15d,B22d, B22d-3&BY22d
IEC60061-3,7006-17B-1Plug gauges for lampholders BY22d

Application:

7006-11-8 “Go”gauges for caps on finished lamps BA9,B15,B22&BY22d

7006-10-8 “Not Go”gauges for caps on finished lamps BA9,B15,B22&BY22d

7006-4A-2 GAUGES FOR TESTING THE INSERTION OF CAPS IN LAMPHOLDERS

7006-4B-1 GAUGES FOR TESTING THE RETENTION OF CAPS IN THE HOLDER

7006-3-1 Acceptance gauge for B22d caps intended for automatic wire threading

IEC60968 Figure3 B22 torque test gauge

Conforms To:

IEC60968-1, IEC60061-3

Guangzhou Shice Equipment offers a wide range of gauge to meet the most common standards including those from IEC, EN, UL, GB,DIN,VDE and others. Such standards require the checking of size & definition etc. these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and a roughness according to standard require. Each gauge is supplied with a certificate of calibration.
