| Material: | Stainless Steel | Standards: | IEC60884 Figure 8 |
|---|---|---|---|
| Number Of Test Station: | 1 | Operating Method: | By Manual |
| Weight: | 300N(pile Up) | Function: | Compression Test |
| Temperature Of The Pressure Plate: | (23±2) ℃ | Test Places: | A And B On The Sheet |
| High Light: | 300N Compression Set Apparatus , IEC60884 Compression Set Apparatus , CNAS apparatus test |

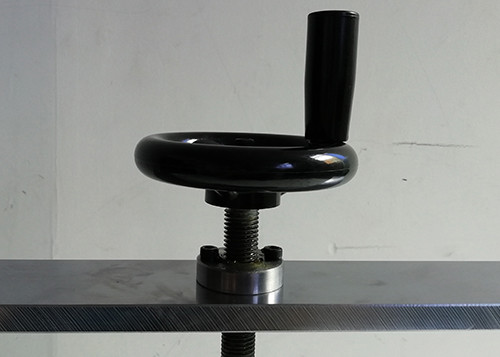

IEC60884 figure 8 Apparatus for Compression Test of 24.5, iec test equipment
Product details:
The specimens are subjected to a compression test as shown in figure 8,
the temperature of the pressure plate, of the base and of the specimens being (23±2) ℃
and the force applied being 300 N.
The specimens are first placed in position a), as shown in figure 8,
and the force is applied for 1 min. They are then placed in position b), as shown in figure 8,
and again subjected to the force for 1 min.
The specimens are removed from the test apparatus and after 15 min they shall show no damage
within the meaning of this standard.
Technical parameters:
| Number of Test Station | 1 |
| Operating method | By manual |
| Weight | 300N(pile up) |
| Conforms to standard | IEC 60884-1 Figure8 |
Confirms:
IEC 60884 Figure 8
