| Standards: | IEC61032 Figure 3 | Warranty: | 12 Months |
|---|---|---|---|
| Name: | Test Rod Probe C | Test Probe Diameter: | 2.5mm |
| Handle Length: | 10mm | Test Proble Length: | 100mm |
| Force: | 3N | Material: | Stainless Steel And Nylon |
| High Light: | IP3X Test Finger Probe , 3N Test Finger Probe , IEC61032 Test Rod probe C |
IP3X 2.5mm Handheld Disjointed Test Rod Probe C IEC61032 Figure3
Main specification and corresponding technical parameters:
| Parameters /Model | SC-F3C | SC-F3C-F |
| Name | Test rod probe C | Test rod probe C with force |
| Test probe diameter | Ф2.5+0.050 mm | Ф2.5+0.050 mm |
| Dam-sphere diameter | SФ35±0.2 mm | SФ35±0.2 mm |
| Handle length | Ф10 mm | Ф10 mm |
| Test proble length | 100±0.2 mm | 100±0.2 mm |
| Handle length | 100 mm | —- |
| Force | —- | 3N force |
| Standard | IEC61032.1 | IEC60529 |
Product information:

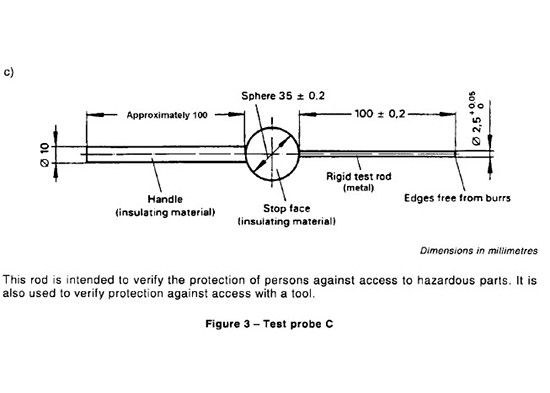

This probe conforms to standard requirements of IEC61032 test probe C and IEC60529 for IP3X and IEC60065.
According to IEC60529: Degrees of protection provided by enclosures(IP Code)
The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects.
This rod probe is intended to verify the protection of persons against access to hazardous parts.
It is also used to verify the protection against access with a tool.
Customizable: It can be used for anti-electric shock test when equipped with amphenol connector.
Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .
The probe whose model number is with “T” is with force.
