| Material: | Stainless Steel | IP Code: | IP9K |
|---|---|---|---|
| Standard: | IEC60529 | Location Of Spray Hole: | 0°, 30°, 60°, 90° |
| Water Temperature: | Room Temperature Or 80±5℃ | Dimension Of Inner Box: | 1000×1000×1000mm |
| Number Of Holes: | 4pcs | Distance From Nozzle To Sample: | 100-200mm Manual Adjustment |
| Water Flow: | 14-16L/min | Spray Pressure: | 8000-10000Kpa |
| High Light: | CNAS IP9K Temperature Test Chamber , 8000Kpa Temperature Test Chamber , CNAS IP9K High Temperature Chamber |

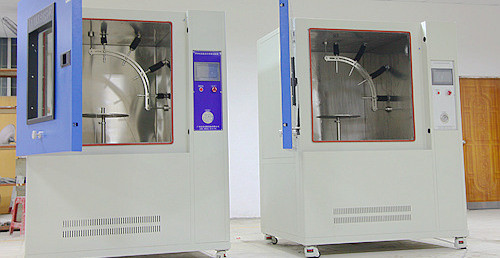

IP9K High Temperature And Pressure Waterproof Test Chamber IEC60529
IP9K Test Chamber Features:
Water tank inside cycling use of water

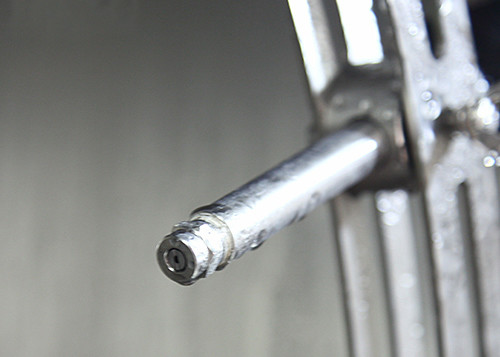

All stainless steel sector nozzle
The water pump imported from Italy
IP9K Test Chamber Technical Parameters:
| Model | SC-IPX9K-1000L |
| Dimension of Inner box | 1000×1000×1000mm |
| Outer dimension | 1200×980×1750mm |
| Number of holes | 4pcs |
| Location of spray hole | 0°, 30°, 60°, 90°, Average distribution vertical direction |
| Distance from nozzle to sample | 100-200mm Manual adjustment |
| Water flow | 14-16L/min |
| Water temperature | Room temperature or 80±5℃ (the temperature deviation can be agreement) |
| Spray pressure | 8000-10000Kpa |
| Rotating speed of turntable | 4-10r/min (Precisely adjustable) |
| Power | 18.0Kw |
| Supply voltage | 380.0V |
IP9K Test Chamber Application:
The spray test system is designed and manufactured according to the standard IEC60529<<Degrees of protection provided by enclosures (IP Code)>>, used to test waterproof performance of the electrical products which second characteristic is numeral 9K.
It is used for the testing of IP9K waterproof degrees testing purposes.
The device to shell protection grade (IP code) based mainly for electrical and electronic products, LED products, lamps, electrical cabinets, communications, digital equipment, transportation and other products to simulate outdoor rain weather conditions, and test the performance of the product is waterproof, to determine whether the corresponding level of protection, in order to product’s design, development and test use.
The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack.
The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.
IP9K Test Chamber Introduction:
This equipment is suitable for the test of electrical products which are enclosure and sealed in the rain environment whether can ensure the good performance of equipment and components. The scientific design of this equipment, so that the equipment can be realistically simulated dripping water, water spraying, splashing water etc. The application of the comprehensive control system and the frequency conversion technology makes the rotation angle of the test sample rack. The swing angle of the pendulum rod and the swing frequency of the spray water can be adjusted automatically.
IP9K waterproof degrees test equipment are designed and manufactured according to IEC 60529 < Degrees of protection provided by enclosures (IP Code)>. This equipment is applied in IP9K waterproof degrees testing purposes, which are widely adopted by luminaire products, electrical and electronic products certification institutions, testing organizations and production enterprises for quality control.
IP9K Test Chamber Conforms:
IEC60529
IEC60034
DIN40050
ISO20653
IEC60598-1
IEC 60335-1
IEC60745-1
VDE0630
VDE0632
IP Code of the IP9K
