| Standard: | EN71, ASTM D1230, CRF 16-1610, CALIF TB 117, FTMS191-5908 | Resolving Capability: | 0.1S |
|---|---|---|---|
| Ignition Time: | 1s Or Set It Set Arbitrary | Power: | AC 220V / 50Hz / 2A |
| Function: | Detect The Flammability Of Textiles | Light Angle: | 45 Degree |
| Test Result: | Printed | Test Room: | Stainless Steel |
| High Light: | 2A 45 Degree Flammability Test , 220V 45 Degree Flammability Test , TUV astm flammability |
45 Degree Textile Fabric Combustion Flammability Test Equipment
Standard:
EN71, ASTM D1230, CRF 16-1610, CALIF TB 117, FTMS191-5908
Parameter:
| Time Display | 0-99.9S |
| Test box | 37cm*22cm*35cm, top 12 vents with a diameter of 12.7mm |
| Resolving Capability | 0.1S |
| Ignition time | 1s or set it Set arbitrary |
| Dimensions | 40*25*54cm |
| Power | AC 220V / 50Hz / 2A |
Description:

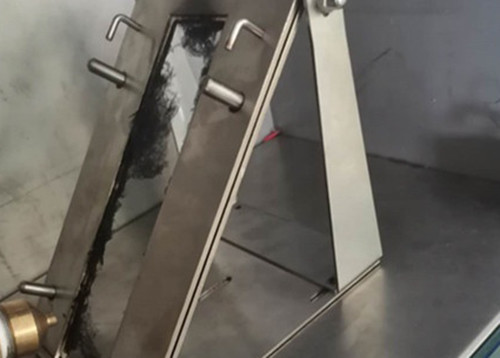

ASTM D 1230 45 Degree Combustion Tester Flame Analyzer with Good Price is designed according to the latest edition of the national standard GB/T14645 design and manufacturing; applies to textile fabric in under 45 ° combustion, determination of the damaged area and damage length determination of heat or melt number to provide exposure to the flame length. Combustion evaluation of refractory materials fire-resistant and can be based on compliance with the implementation of standards, measurement of sample is installed at a 45 degree angle light and perfect combustion characteristics. ASTM D 1230 45 Degree Combustion Tester Flame Analyzer with Good Price for measuring burning time and passive smoke glow time, graphic placement sample received some radiation, and fixed heat generated in the testing equipment.
It is used to detect the flammability of textiles taken from consumers or from consumers in addition to pajamas or protective clothing for children’s pajamas.
One combustion air supply unit and one 50th mercerized cotton sewing machine line.
Features:
1. Fully automatic combustion time control device with time adjustment accuracy of 0.1 seconds
2.Stainless steel test room
3.Organic transparent glass door, easy to observe
4.friendly man-machine interface, easy to set up
5.Touch screen LCD screen can switch between Chinese and English display
6.Automatically record 5 groups of burning time
7.The device can print test results
