IEC60245 Cable Testing Equipment , Static Flexibility Test

Standard:IEC60245-1Function:For Checking Mechanical Strength Of Completed Flexible Cables
A, B Clamping Head Initial Distance:200mmA And B, Shall Be Located At A Height Above Ground Level:At Least 1.5m
Sample Length:3±0.05mThe Cable Being Turned In The Clamp:180°
Number Of Testing Times:2Test Sample:Ar-welding Electrode Cables And Lift Cables
High Light:IEC60245 Cable Testing Equipment ,  200mm Cable Testing Equipment ,  CNAS static flexibility test

IEC60245 Static Flexibility Tester For Testing Cable Mechanical Strength

Product Information:

This apparatus conforms to IEC60245-1 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 1:General requirements, IEC60245-2 clause 3.2 and Figure 2 Rubber insulated cables-Rated voltages up to and including 450/750 V-Part 2: Test methods.

It is used for checking mechanical strength of completed flexible cables. This test does not apply to flexible cables with cores of nominal cross-sectional area greater than 4mm2 and cables having more than 18 cores laid up in more than two concentric layers.

Technical Parameters:

A, B clamping head initial distance200mm
A and B, shall be located at a height above ground levelAt least 1.5m
Sample length3±0.05m
The cable being turned in the clamp180°
Number of testing times2

Application:

The apparatus is used for the static flexibility test for ar-welding electrode cables
It is used for the static flexibility test for lift cables

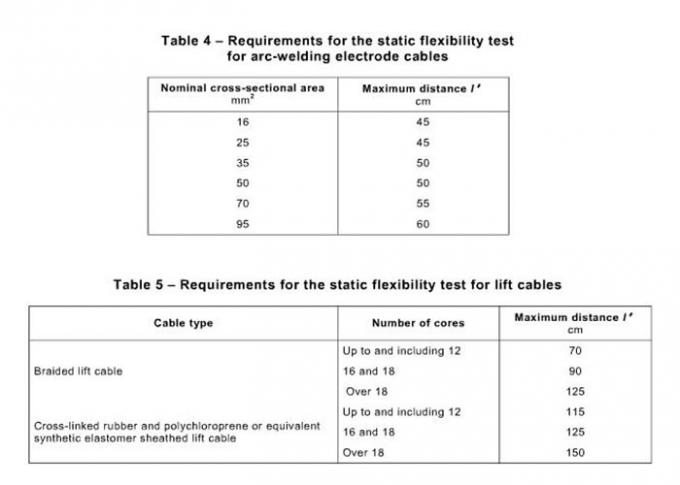

Standards:
