| Material: | Stainless Steel And Nylon | Standards: | UL1310 Figure 16.4 |
|---|---|---|---|
| Warranty: | 24 Months | Application: | Safety Test |
| Customized Support: | OEM, ODM | Probe Total Length: | 114.3mm (4.5inches) |
| High Light: | S3252 Accessibility Probe , Figure 16.4 Accessibility Probe , UL1310 Accessibility Probe |
UL1310 Figure 16.4 S3252 Accessibility Probe
UL1310 Figure 16.4 S3252 Accessibility Probe Fan Finger Guard
Product details:
The UL1310 S3252 test probe conforms to standard requirement of UL1310 Fig 16.4(S3252). It is used for testing accessibility to hazardous moving parts such as access to fan blades through a fan finger guard.

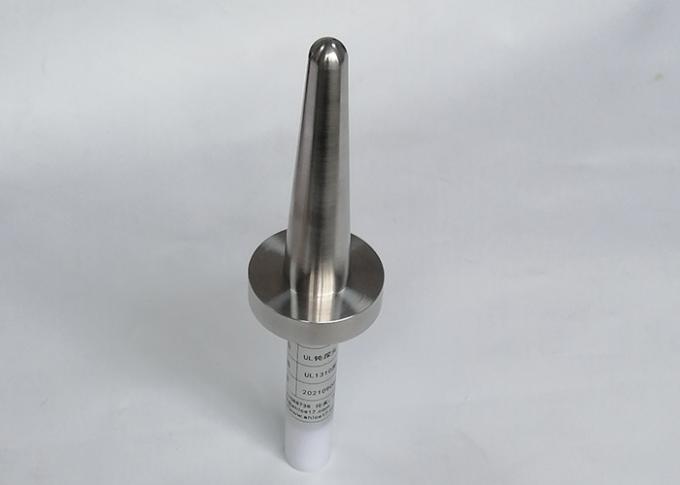

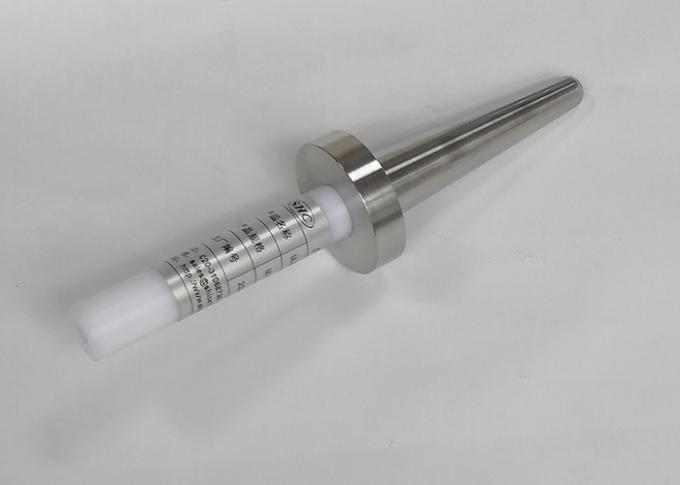

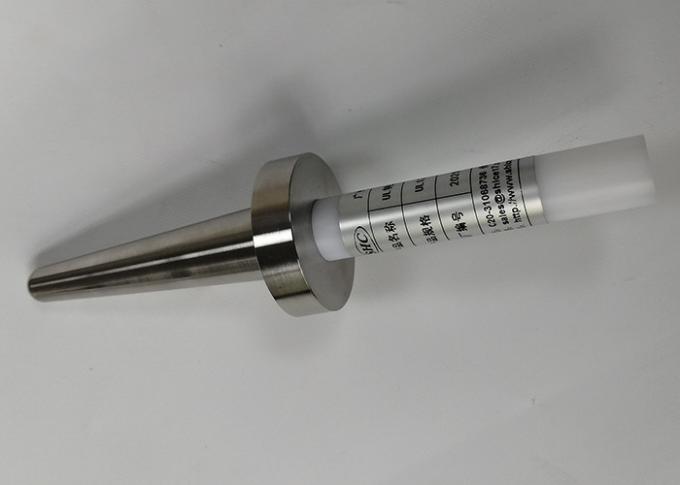

The handle is nylon while the tip is stainless steel.

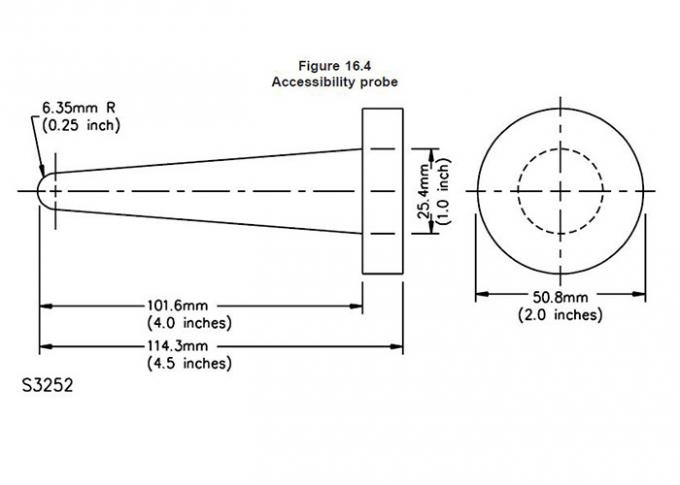

Product Parameters:
| Probe Total Length | 114.3mm(4.5inches) |
| Tail Probe Diameter | 25.4mm(1.0inch) |
| Head Probe Diameter | 50.8mm(2.0inches) |
| Former Head Radius | R 14.3mm(0.25inch) |
| Standard | UL1310 figure 16.4 |
Standards:
More pictures:
