| Material: | Stainless Steel | Standards: | IEC60065 Figure 4 |
|---|---|---|---|
| Warranty: | 24 Months | Application: | Safety Test |
| Customized Support: | OEM, ODM | ||
| High Light: | Figure 4 Test Hook Probe , Stainless Steel Test Hook Probe , IEC 60065 Test Hook Probe |

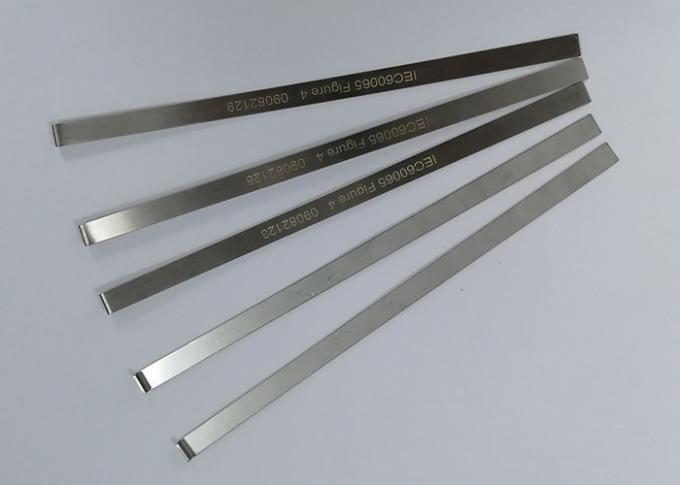

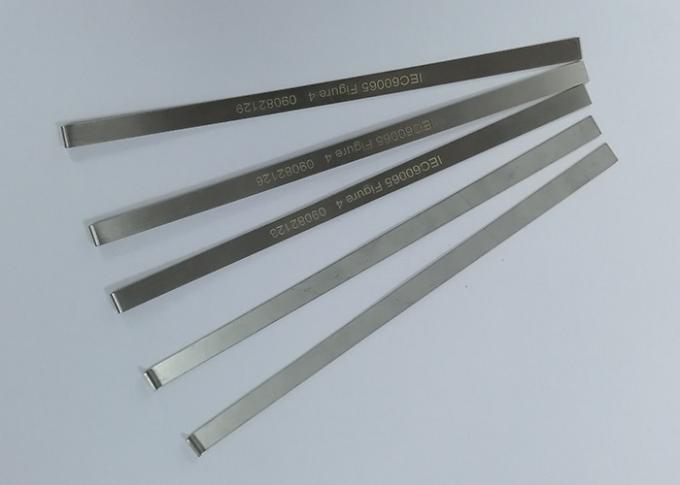

IEC60065 Figure 4 Test Hook Probe
Product information:
The test hook complies with IEC60065. It is used to test whether the dangerous electric parts can be touched. The test hook is “hooked” into vents and seams in the enclosure & then pulled with a force (usually 20N). The hook has a hole at its long end, for use in conjunction with a PFI series Force Gauge. It is made entirely of stainless steel.
Technical parameters:

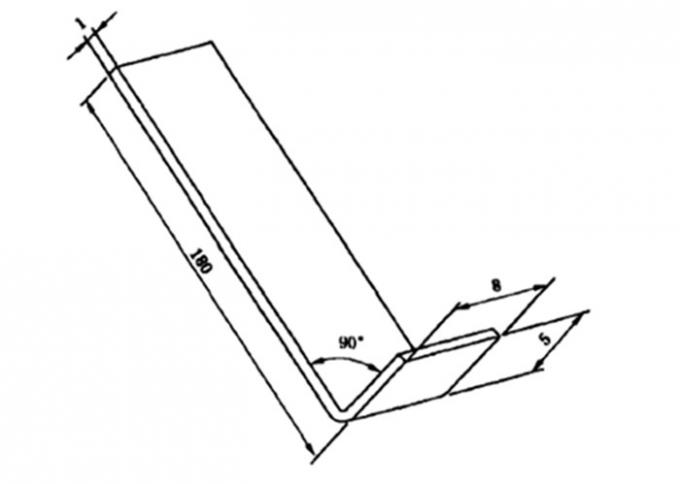

| Parameters/Model | Test hook SC-65F4 |
| 1 | 180±0.05 |
| 2 | 8±0.15 |
| 3 | 5±0.05 |
| 4 | 1±0.15 |
| 5 | 90° |
