| Material: | Mold Steel | Standards: | AS/NZS 3112 |
|---|---|---|---|
| AS/NZS3112 FigureA1: | Rating And Dimensions Of Low Voltage Plugs Gauge Fig A1 (10A, 15A, 20A) | AS/NZS3112 Figure B1: | Rating And Dimensions Of Low Voltage Plugs Gauge Fig B1 |
| AS/NZS 3112 Figure 3.1 A: | Contact Gauge In Fig 3.1 A | AS/NZS 3112 Figure 3.6: | Device For Checking The Resistance To Lateral Strain (three Pin Gauge) |
| AS/NZS 3112 Clause 3.7: | Device For Checking The Resistance To Lateral Strain (two Pin Gauge) | AS/NZS 3112 Clause 2.2.3: | Form Of Pin In Figure 2.3 |
| High Light: | Maximum Retaining Force Gauge , AS/NZS3112 Retaining Force Gauge , Fig 3.1 a Socket Test Gauge |
AS/NZS3112 Australia Standard Plug gauge And Socket outlet gauges
1. Application:

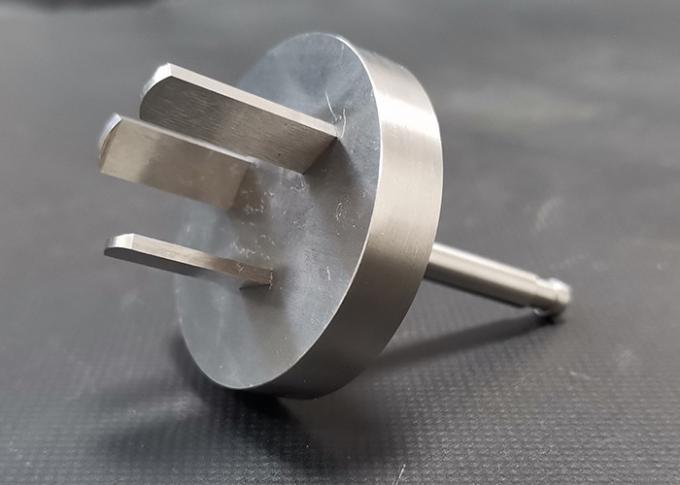

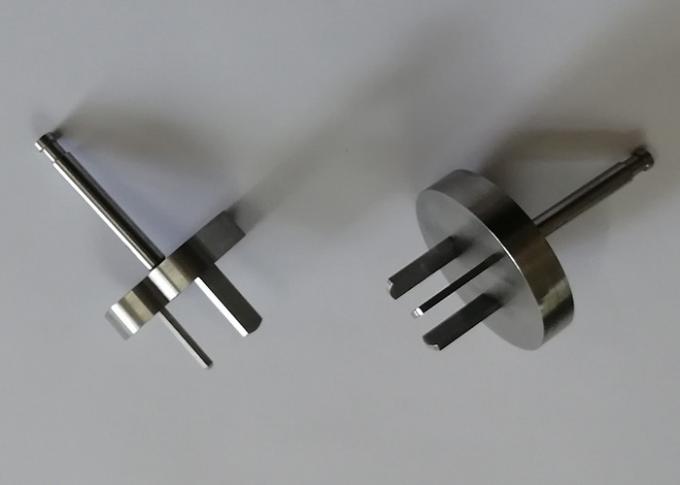

This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries are electronics, electrical appliances, plugs and sockets and other similar areas.
2. Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Material hardness is more than 50HRC; Material thermal expansion coefficient is small, dimensions and tolerances is stable and reliable.
Conforms To:
AS/NZS 3112
Specification:
| 7 | AS/NZS3112-Fig3.6 | device for checking the resistance to lateral strain (three pin gauge) |
| 8 | AS/NZS3112-Fig3.7 | device for checking the resistance to lateral strain (two pin gauge) |
| 9 | AS/NZS3112 figure A1 | gauge for three-pin 250 v max flat-pin plugs |
| 10 | AS/NZS3112 figure B1 | gauge for two-pin flat-pin 125 v max. plugs (with parallel pins) |
| 11 | AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. |
| 12 | AS/NZS3112 figure D1 | Three-pin test plug with flat pins for abnormal insertion test. |
| 13 | AS/NZS3112 figure F1 | Plugs and socket-outlets for use in extra-low voltage circuits |
| 14 | AS/NZS3112 figure G1 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test |
| 15 | AS/NZS3112-2.13.9.1 | 18N Australia plug testing device |
| 16 | Item 3.3.4.1 | Test gauge of Minimum Pullout force |
| 17 | Item 2.3.2 /figure 2.3 | Not go gauge of socket aperture |
| 18 | Item 3.14.8.2/figure 2.1(a),(b),(c) | Plug of socket temperature rise testing |
| 19 | Item 2.8.1 | Test pin of distance testing gauge |
