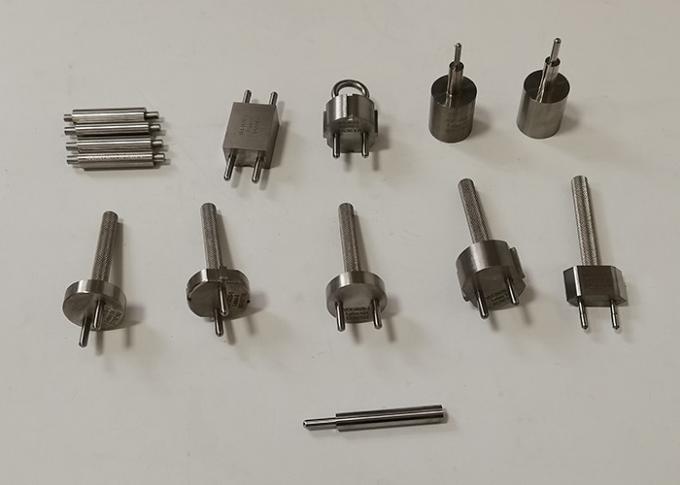

DIN-VDE0620 Germany Standard Plug Tester Outlets Gauges
Lehre 6 – Lehre für den Stiftdurchmesser
Germany plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of VDE0620-1:2010.
| DIN-VDE0620-1-lehre2 | Minimum opening width and minimum pull out force of contact jack |
| DIN-VDE0620-1-Lehre3 | Bipolar plug force |
| DIN-VDE0620-1-Lehre4 | Bipolar plug with earthing contact insertion flanking force |
| DIN-VDE0620-1-Lehre5 | To test the first time contact closure interval gauge |
| DIN-VDE0620-1-Lehre6 | Pin diameter |
| DIN-VDE0620-1-Lehre7 | Pin distance |
| DIN-VDE0620-1-Lehre8 | The maximum opening width of the contact jack |
| DIN-VDE0620-1-Lehre9 | Interchangeability test plug gauge |
| DIN-VDE0620-1-Lehre10-A | The impossibility of the contact of the single pole contact hole A |
| DIN-VDE0620-1-Lehre10-B | Unipolar contact hole contacts not the possibility of B |
| DIN-VDE0620-1-Lehre11 | No bipolar plug ground contact can not be inserted |
| DIN-VDE0620-1-Lehre12 | The possibility of unipolar insertion plug (including 250 grams and 1000 grams of weight and the positioning rack) |
| DIN-VDE0620-1-Lehre13 | After normal operation test of live parts check protection inside the door can not touch the probe |
| DIN-VDE0620-1-Lehre14 | On both sides of the ground test |
| DIN-VDE0620-1-Lehre15 | Live parts check protection inside the door and strengthen the protection of live parts socket can not touch with the probe |
| DIN-VDE0620-1Fig15 | Gauge |
| DIN-VDE0620-1-Lehre16a | The maximum pullout force plug (16a) |
For more VDE 0620 Plug and socket outlets gauges, please feel free to contact us.
